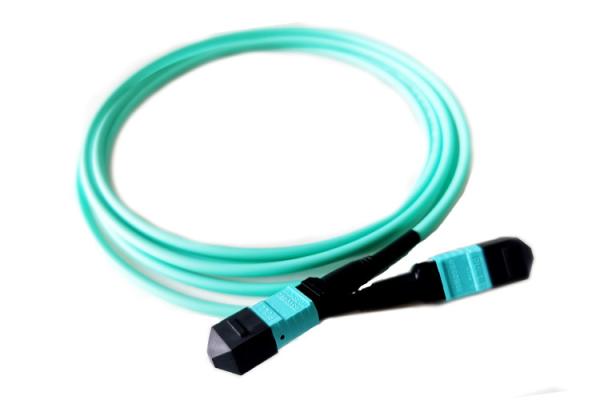

Multimode OM4 12 core MPO-MPO 3.0mm 1m Fiber Cable High Durability ISO/IEC 24764
Description:
MPO connectors feature male and female connector design.
The MTP / MPO connectors can be mass terminated in combinations of 4, 8, or 12 fiber ribbon cables. The MPO Adapter comes standard in black.
OM3 fiber comes with an aqua color jacket. Like the OM2, its core size is 50 µm, but the cable is optimized for laser based equipment. OM3 supports 10 Gigabit Ethernet at lengths up to 300 meters. Besides, OM3 is able to support 40 Gigabit and 100 Gigabit Ethernet up to 100 meters, however, 10 Gigabit Ethernet is most commonly used.
The real difference between OM3 and OM4 multimode cable is that OM4 provides a higher modal bandwidth--4700 MHz·km compared to 2000 MHz·km for OM3. This means that OM4 can transmit more information within the same distance.
Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Free-floating ceramic ferrule
Clips are avaliable for SC and LC duplex connector.
Good exchange ability and good durability
The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
Application:
CATV
Active device termination
Telecommunication networks
Metro
Test equipment
Premise installation
Local Area Networks (LANs)
Data processing networks
Wide Area Networks(WANs)
Order Information:
|
Item
|
Connector Description
|
Item
|
Connector Description
|
|
|
PC/UPC/APC
|
|
PC/UPC/APC
|
|
Connector Singlemode 9/125
|
ST
|
Connector Multimode (50/125 or 62.5/125)
|
ST
|
|
SC
|
SC
|
|
FC
|
FC
|
|
LC
|
LC
|
|
MU
|
MU
|
|
MTRJ(female)
|
MTRJ(female)
|
|
MTRJ(male)
|
MTRJ(male)
|
|
DIN
|
|
|
|
|
| Parameters |
Standard Fiber Cable Assemblies |
| Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3/OM4) |
| Jacket Materials |
LSZH/OFNR/PVC |
| Connector Type |
SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
| Ferrule Materials |
Ceramic |
| Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
| Insertion Losss(dB) |
≤ 0.3dB |
≤ 0.3dB |
| TIA/EIA-455-107 |
(PC/UPC/APC) |
(PC/UPC) |
| Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
| TIA/EIA-455-107 |
≥55dB(APC) |
| Exchangeability |
≤ 0.2dB |
| Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
| Operating Temperature (° C) |
-10~ + 70 |
| Storage Temperature (° C) |
-40 ~ +85 |
| Package |
1unit/bag |
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
