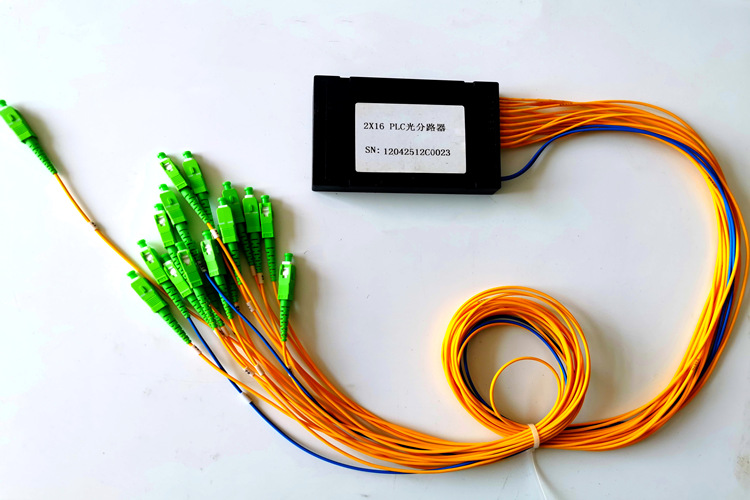

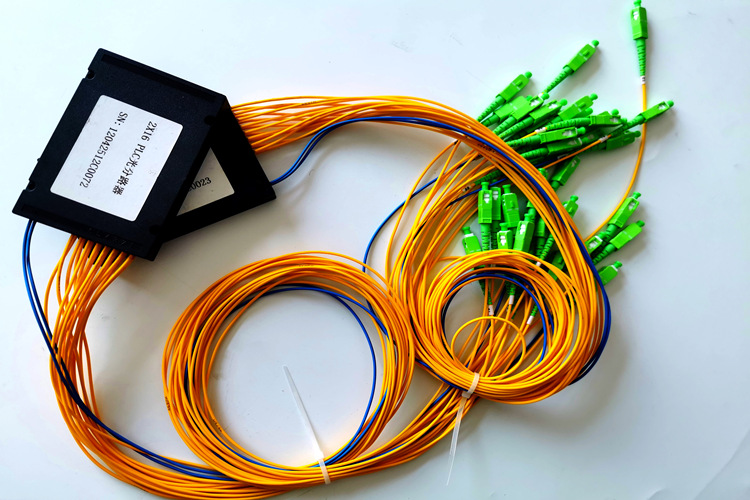

High Reliability Fiber Cable Splitter 2X16 SC APC Low Polarization Dependent Loss
PRODUCT SHOW:
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Description of PLC Splitter:
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Splitter is responsible to distribute the signal from CO to numbers of premises. Planar Lightwave Circuit (PLC) splitter provides highly stable splitting performance superbly across temperature and wavelength in low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Different splitting ratio is available, 1X2, 1X4, 2X4, 1X8, 2X8, 1X16, 2X16, 1X32, 2X32 and 1x64.
Features
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.
